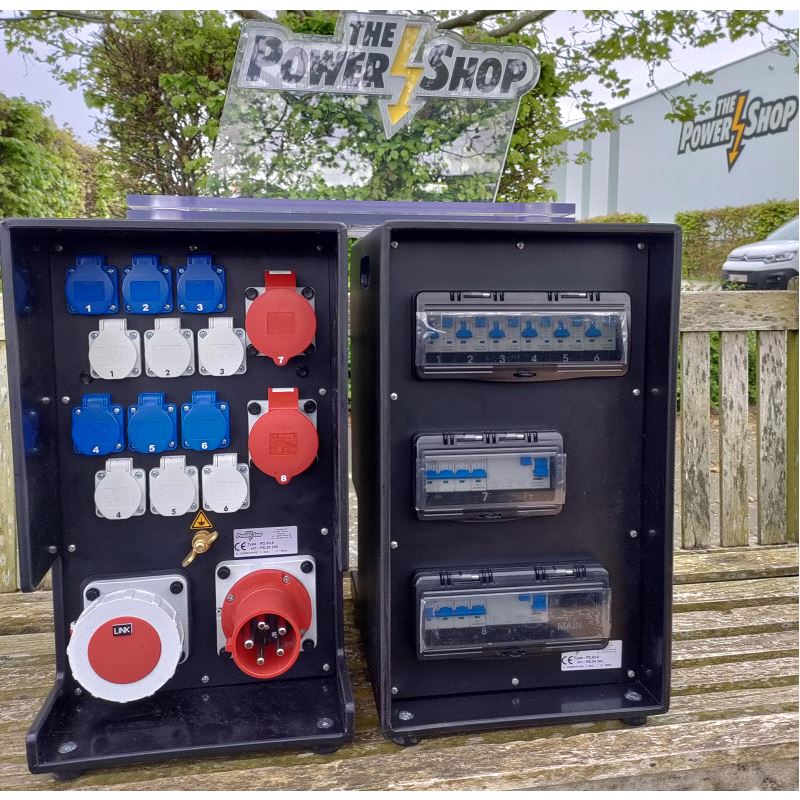

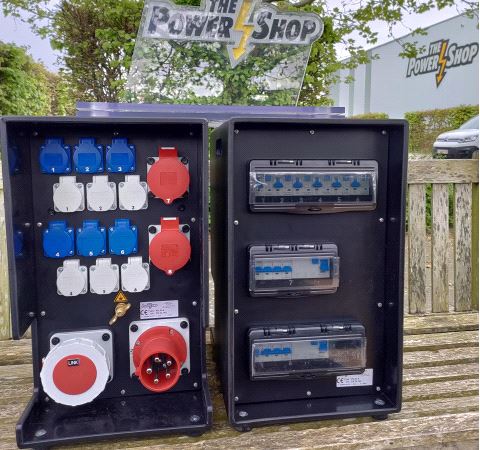

(Picture shows front and back of unit)

PD.63.6.1

• Black plastic housing (HD-PE) type PS30 (dimensions: width 310mm x depth 340mm x height 520mm)
• Protection degree: IP44, IEC 60592
• Glow-wire-test, IEC 60695, 650°C en 960°C

• Input voltage: 3x400V+N+PE
• Machine plug: CEE 63A/5p/400V
• Main switch: 63A/4p

• 1 x Socket CEE 63A/5p/400V direct link
• 2 x Socket CEE 32A/5p/400V, each protected by C32A/4p/10kA and RCD 40A/4p/300mA
• 12 x Socket Schuko (german version) 16A/3p/230V, by 2 protected with a RCBO C16A/1p+N/10kA/30mA

• Earth bolt M10
• Countersunken handles
• 4 rubber feet
• Hinged covers to protect the breakers
• The necessary labeling for the breakers and connectors
