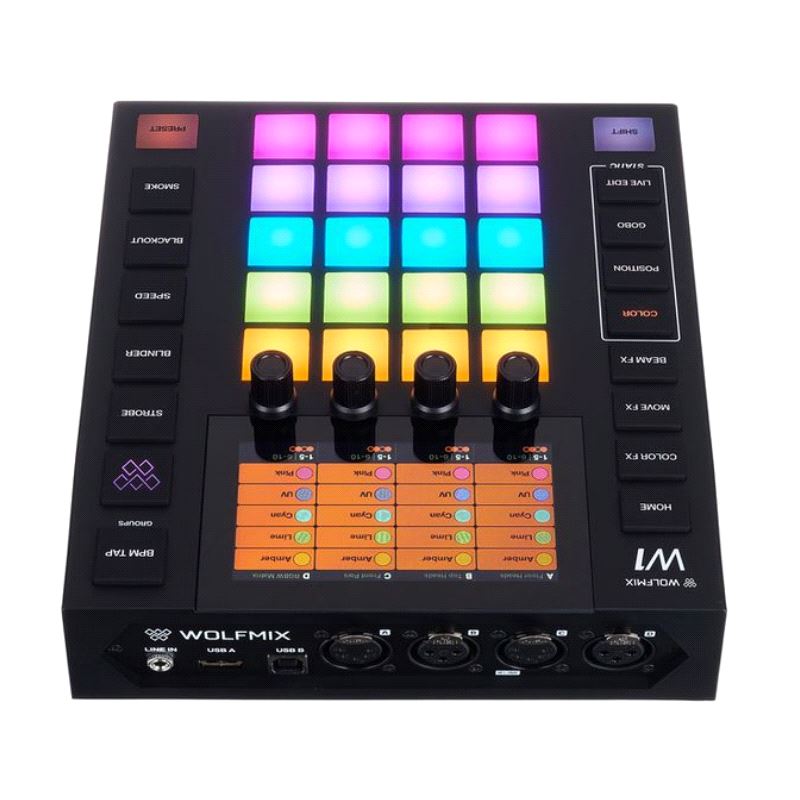

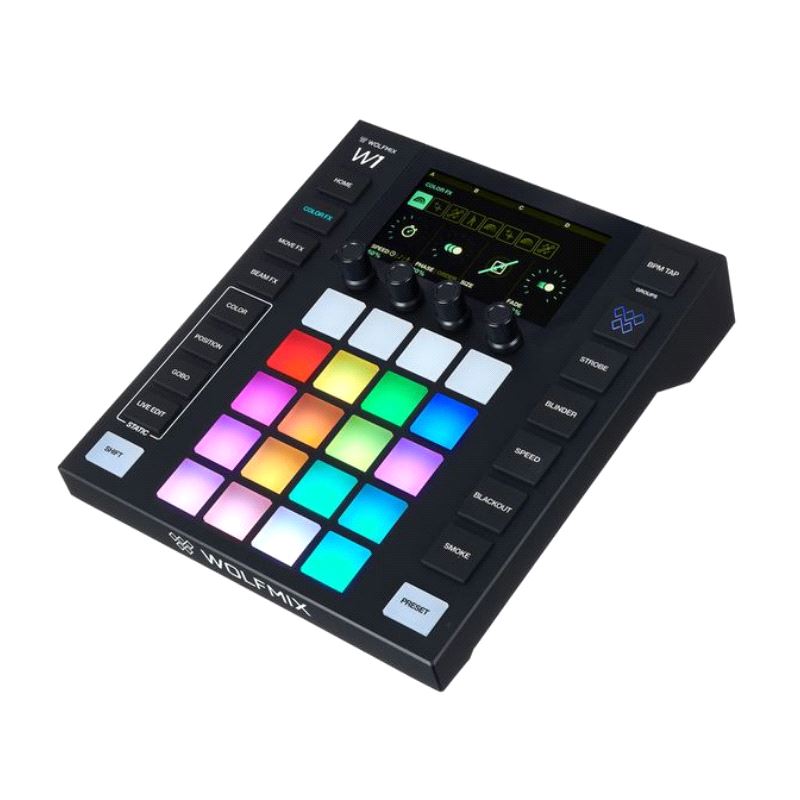

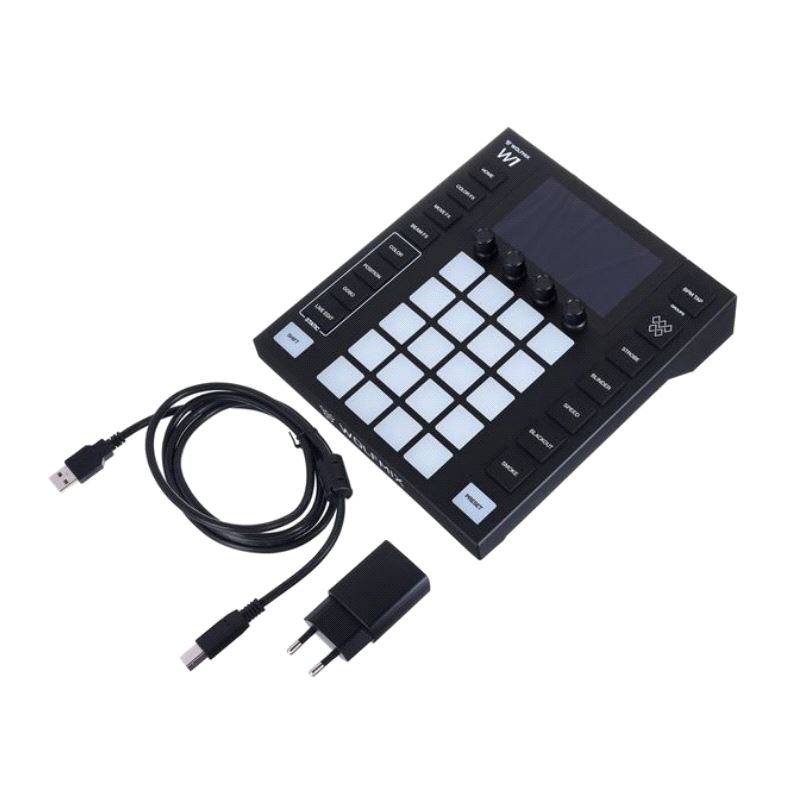

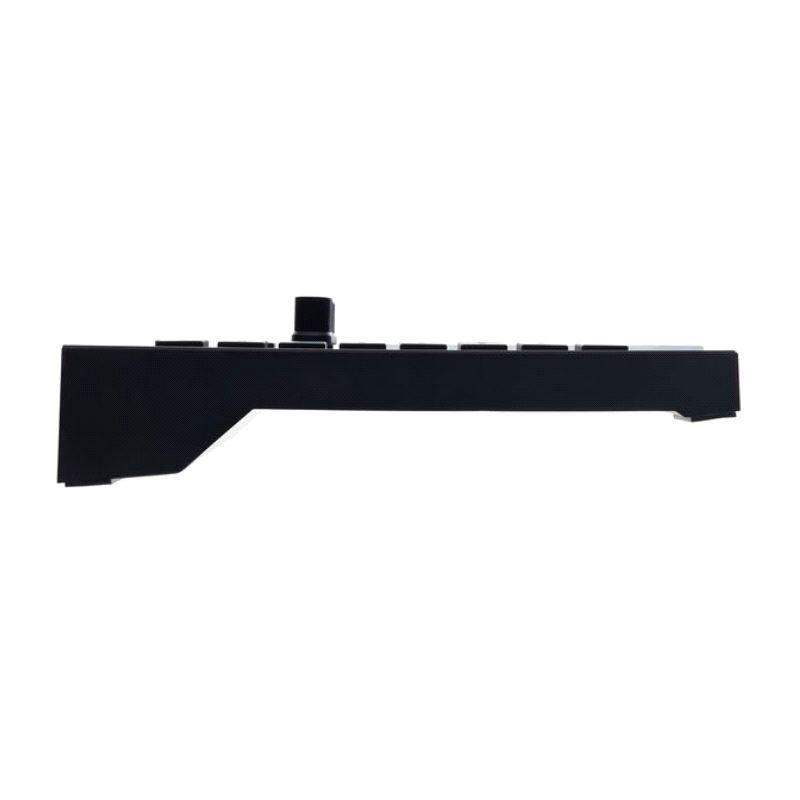

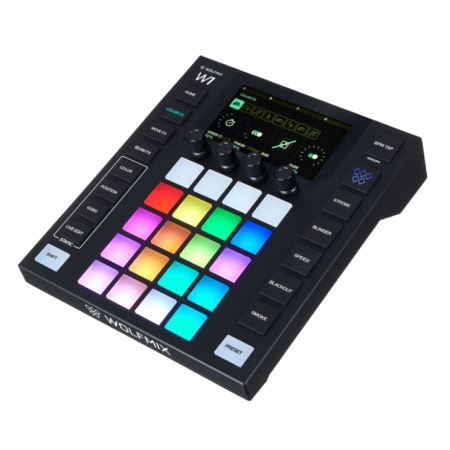

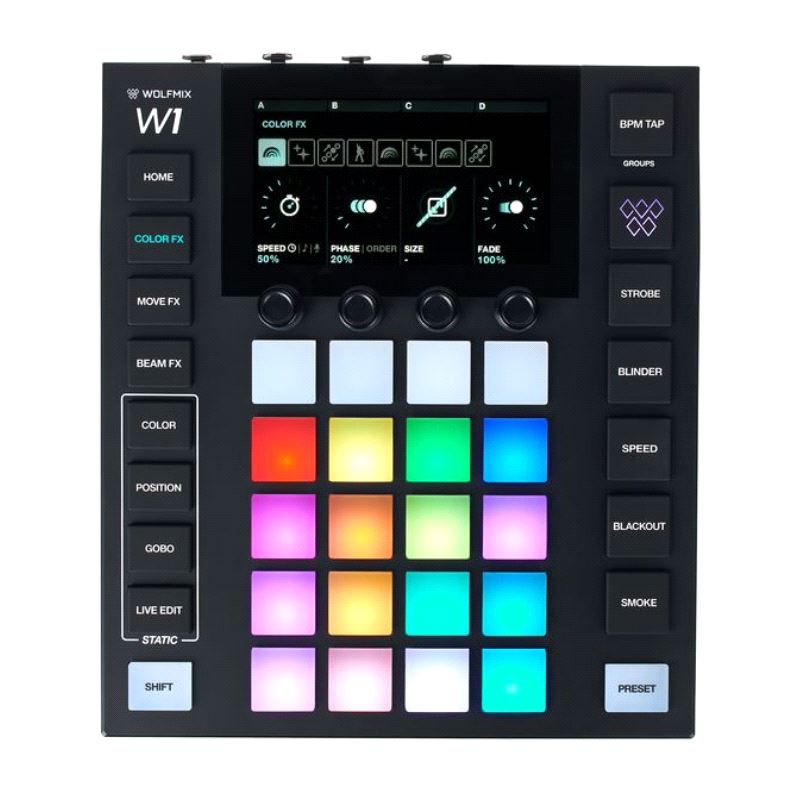

Standalone DMX Controller



• No computer required
• Compatible with any DMX device
• Up to 4 DMX universes (2048 channels. Add-on required for U3+4)
• Up to 680 spotlights and beams
• Up to 50 device types
• Up to 5000 device properties (colour/gobo etc...)
• 8 Device groups
• 6 Projects
• 15000+ available fixtures (3500+ on the controller)
• DMX address, device sequence and group settings
• Use as DMX splitter with DMX universe mapping
• Colour, Move and Beam FX module with 8 effect types each
• 100 Preset Slots for saving snapshots with hold and fade timings
• FX music pulse synchronisation from microphone or line-in
• FX BPM synchronisation with Ableton Link, OS2L or BPM Tap
• Effect speed, phase, sequence, size, fade, fan and flick
• Live control of Move FX registration point
• Global FX speed and freeze control
• Map DMX IN with group dimmer and patch to output channels (add-on required)
• WLINK sync with another Wolfmix controller (add-on required)
• MIDI controller and USB stick interface
• DMX channel tester
• Time-controlled triggering of the flash and preset buttons
• Time-controlled triggering of flash and preset buttons
• Fixture FLIP function for reversing the beam sequence
• Fixture SPLIT function for splitting multi-FX bars
• Project and fixture backup with the WTOOLS app
• Offline 3D visualisation with Easy View & WTOOLS via USB (add-on required)
• Automatic restoration of the active project (no manual saving necessary)
• Import different fixture setups into the same project

Technical data:

• Housing: ABS plastic
• Powder-coated steel base plate with 100 mm VESA

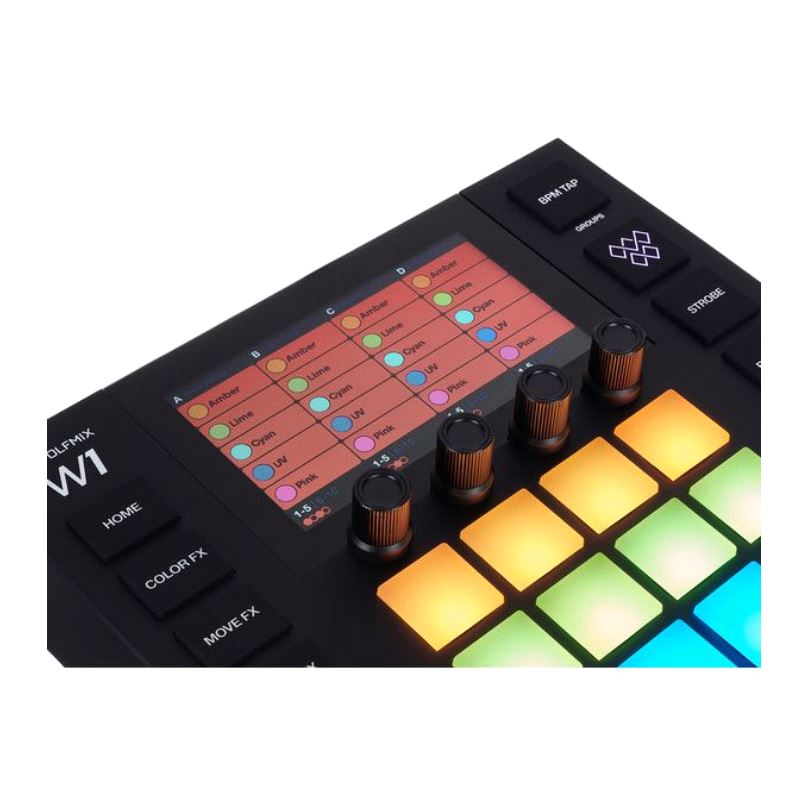

• Screen: 4.3" colour TFT with tinted glass
• Capacitive touch
• Audio: Omnidirectional electret microphone
• 3.5 mm Jack line-in

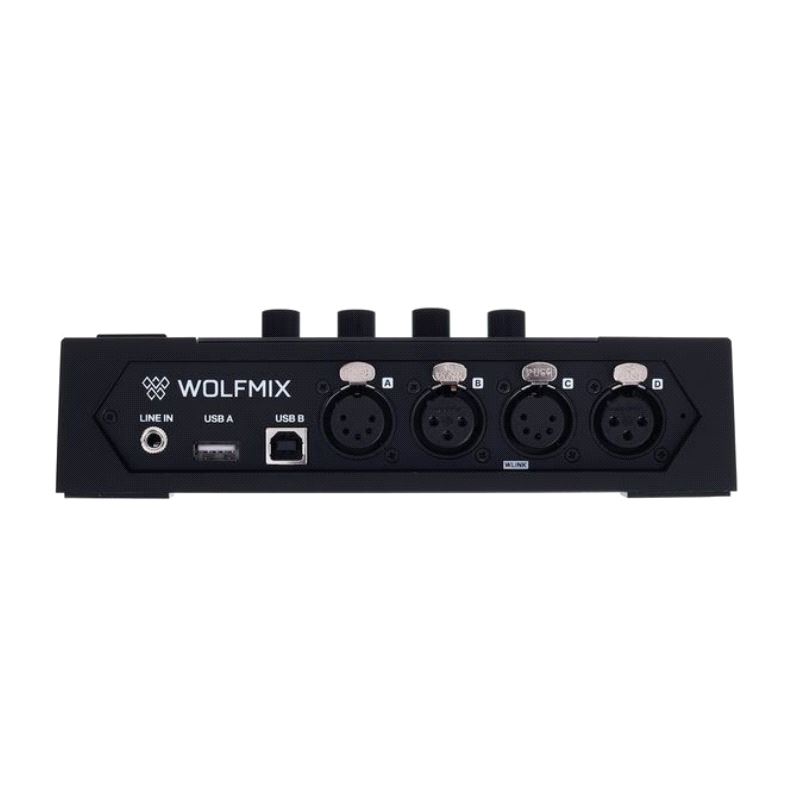

• DMX: 2x 3pin DMX OUT XLR connections, 1x 5pin DMX OUT XLR connection and 1x 5pin DMX IN/OUT XLR connection with WLINK
• USB-A for connection to MIDI controller or USB memory
• USB-B connector - 900ma required (USB3 rating)
• Dimensions (W x D x H): 195 x 220 x 62 mm
• Weight: 1070 g

user manual (ver. 2.0 English) | mini guide (ver. 2.0 English)

download section
